Three Key Ways to Optimize Kontakt Player & Instrument Libraries

Save RAM, save CPU and get lightning fast load times in Native Instruments' Kontakt Player for all your sample libraries with these optimization techniques!

Native Instruments' Kontakt Player should be a staple of any serious producer’s toolbox, if it somehow isn’t already. The sheer number of high quality sample libraries is astounding. When you get one of those libraries you will want to know a few key procedures about how to make things run smoother, quicker and take up less resources, like RAM and CPU.

Luckily for you, I have three techniques that are sure to make you and your computer happy in that regard!

Saving RAM…. Lots of RAM!

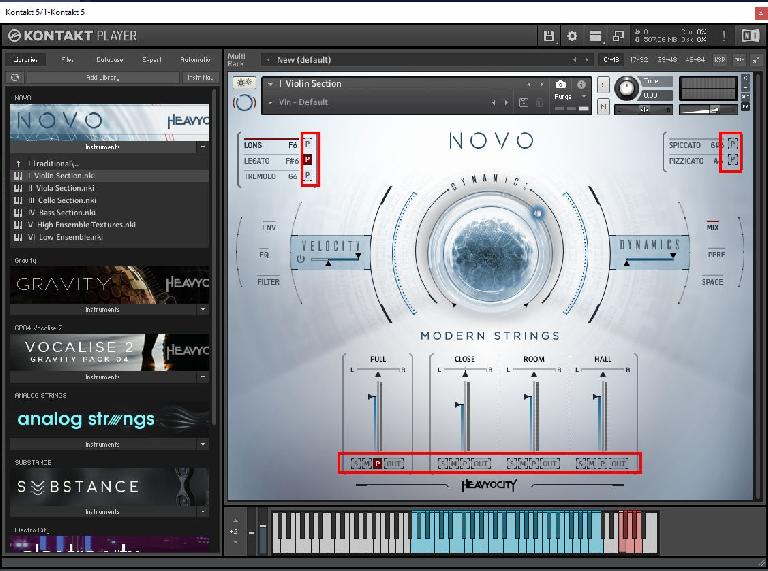

If you don’t have a stacked machine with 32 GB of lightning fast RAM, like most of us, then this trick is for you. It’s called the “Purge” function. Some larger, more complex instrument libraries come with Purge functions built in to the GUI, usually marked with a P. Take NOVO by Heavyocity for example. If you look next to the articulation and mic position options you can see a P (purge). Each one of those Ps represent another set of samples loaded into RAM. If you click that button all the samples for that articulation or mic position will be purged from memory. This means it frees up RAM for other processes.

However, it also means that the samples will need to be loaded again if you want to use them in the future. Don’t worry though, they don’t get erased or anything. Not all instruments have the built-in purge function, but the Kontakt player itself does and this method can go quite a bit further. Using this technique, you can load samples on a note by note basis. As you can imagine, this will save you tons of RAM!

The Process

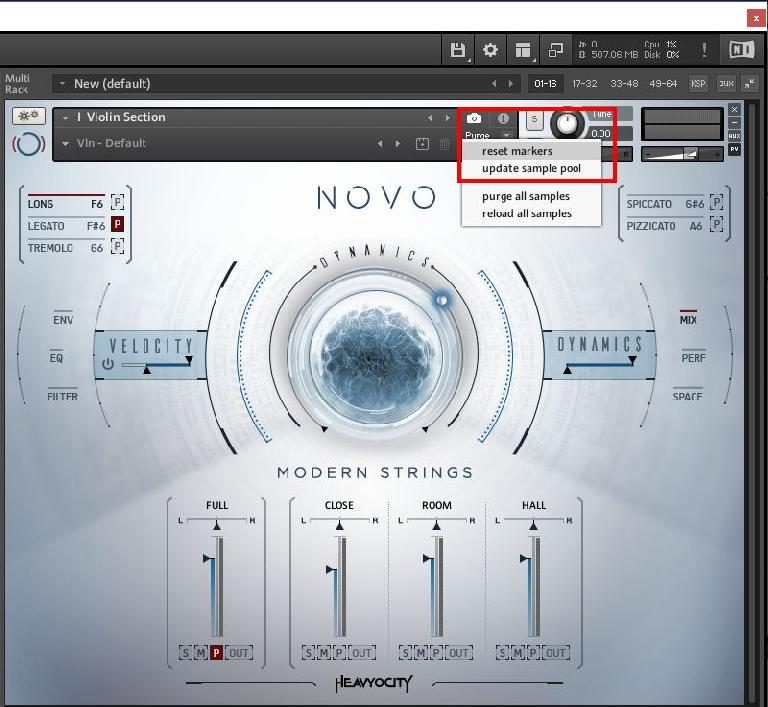

Go to the Purge menu in the Kontakt instrument shell. It’s located directly under the camera (snapshot) icon. From the options, click “Reset Markers”. Next, play the notes on your keyboard that you will want to use for your performance, or you can just let the MIDI clip play if you are using that method. Be sure to play through the entire performance. Then go back to the Purge menu and select “Update Sample Pool”. This will purge all the samples that weren’t marked in the last step. That could be gigabytes of RAM, depending on the instrument loaded.

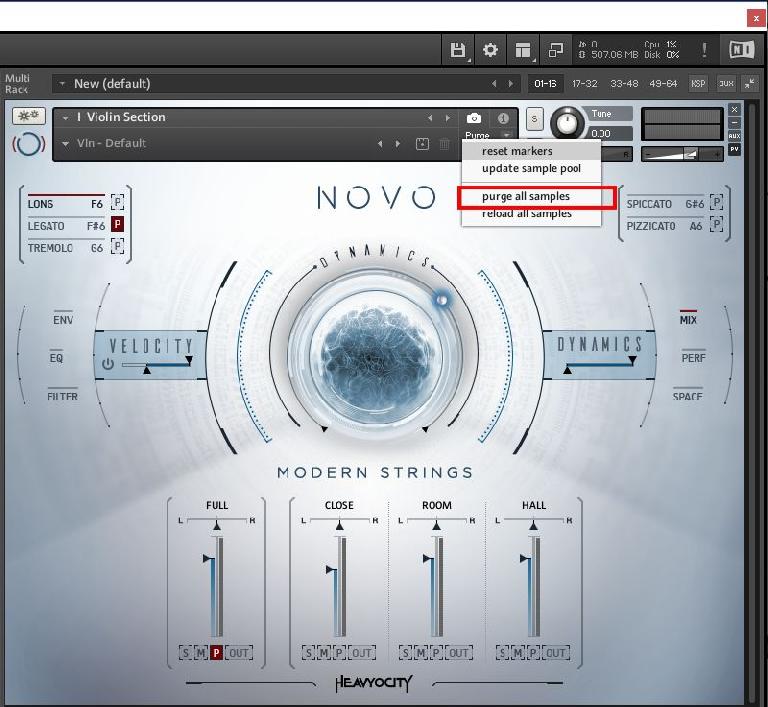

You can also choose to purge all samples. Then you can manually load them as they get played. If your computer isn’t the fastest in the world you will want to do this before any live performance to make sure load times aren’t disruptive.

Both methods will keep the other samples on standby. You can also just hit an unloaded note to load it to memory again. Not only that, but if you ever want to go back to the initial state you can choose “Reload All Samples” from the Purge menu.

Saving CPU with Multi Outs

The Kontakt player is meant to hold multiple instruments at the same time. If you are dropping a new Kontakt player onto a channel for every Kontkat instrument you want to use you are doing it wrong. In Ableton Live you want to use what is called the External Instrument, which will be something similar in other DAWs. Note that External Instrument is not available in Live Lite.

Load up an instance of the Kontakt Player 5 8out. This is going to give us 4 stereo outputs (or 8 mono), if you want 8 stereo outs (or 16 mono) load the Kontakt Player 5 16out. Make sure you can see Kontakt’s Output panel. Your Output panel will probably look different than mine in the picture below, but don’t worry, we are going to fix that!

Now, click the + sign next to the Output item, don’t worry about what is in the Output section right now, we are going to overwrite what’s there.

From the popup menu input the following:

  • Quantity -> 4
  • Channels -> 2 (This is for stereo outputs)
  • Standard / Host output -> Kt. St. 1 [1]
  • Ascending Out Assignment -> Checked
  • Deleted Existing Channels… -> Checked
  • Make this your Default -> Checked (if you don’t want to do this every time)

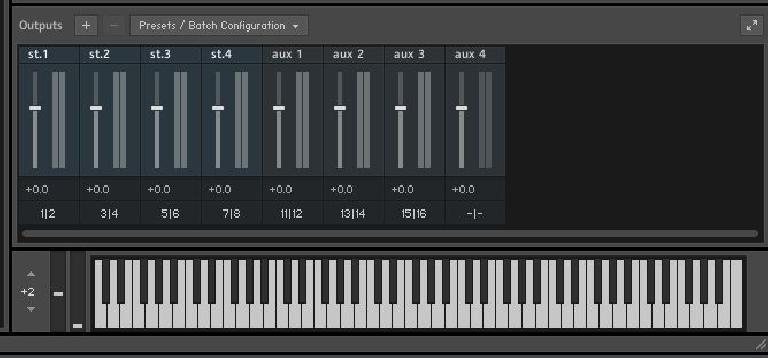

Hit OK and your Output menu should update.

Your first instrument will automatically be output to the channel containing the main Kontakt player. Add a new MIDI channel with the External Instrument VSTi on it. Make the following changes to the 3 dropdown menus.

  • MIDI To: 1-Kontakt 5 8out (send the MIDI information from the External Instrument’s channel to the Kontakt Player.)
  • 2-Kontakt 5 8out (sends the MIDI to the 2nd instrument in the player.)
  • Audio From: Kt. St.2/-Kontakt 5 8out (receives the output from the 2nd instrument in the Kontakt player)

There is one last thing you need to do in the instrument itself. Click the little circle with the "i" in it. There are two settings you will want to make sure are correct: the Output and MIDI Ch. The MIDI Channel should have auto updated, but if it hasn’t make sure it’s set to Port A: 2. The Output will not have auto updated and you will want to change that from St.1 to St.2.

Then you should be able to play the instrument through the external instrument’s MIDI channel and hear the audio routed out through that same channel. You can add more instruments. Just make sure to follow the same steps, but choose 3 for the next one and 4 for the one after that.

Quicker Load Times

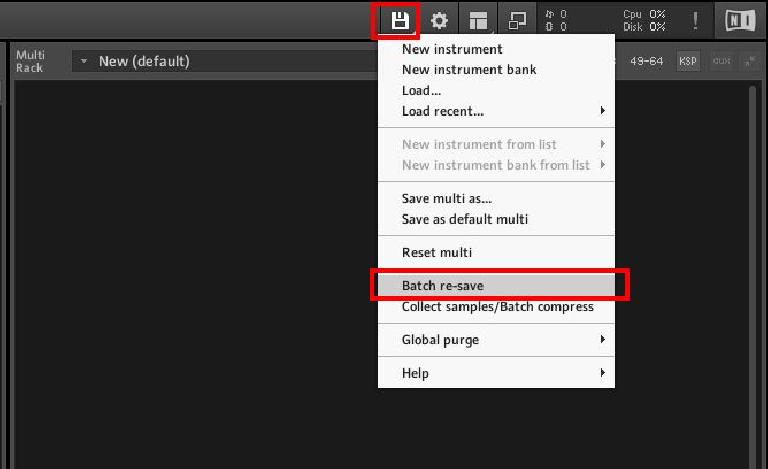

This one is easy and you will only need to do it once, as long as you don’t move the library samples. As soon as you install a new library you will want to do this before instantiating the instrument in the Konakt Player, but you can do it after if you have already used the instrument. You will want to do what is called a “Batch Re-save”. It can be found in the Kontakt Player's Disc Icon Menu at the top of the player.

What this does is follow all the references (pathways) to the instrument and preset files and saves them. That way when you load up an instrument, snapshot or preset it doesn’t need to try and find it, which can create longer load times.

This will help when loading new snapshots, instruments and cycling through presets. When you go to do a Batch Re-save you will be confronted with a scary warning message. Don’t worry about it, just make sure to select the same folder you selected to get Kontakt to recognize the new library. Just the main folder, not anything inside of it.


Using these three techniques should have you well on your way to fully utilizing the powerful Kontakt player to its full potential. Whether you are doing so to help with a less-than-awesome computer or just trying to be a bit more professional in your understanding of the instrument, if you can remember these tips, your production workflow will be better for it!

Learn Kontakt and how to build your own Kontakt instruments in the AskAudio Academy.

Joshua Casper is an accomplished live performer, DJ, producer, and music educator. His specialties are centered in and around Ableton Live and Native Instruments. His educational material has been featured on and as well as a myriad of large music production websites. His music has been featured on Read More


Hi Joshua,

Nice article and very informative. As a Logic user, I'm confused about the section "Saving CPU with Multi Outs". Almost everything I've read & heard since Logic 10.2, including in the words of a few Ask Audio/MPV lecturers, has said that multiple instantiations of Kontakt *is* the way to go, rather than loading a single instance of Kontakt multi-out on one track. The reason given was that it distributes the load across cores more efficiently (?).

Could you confirm or refute as it pertains to current versions of Logic? Thanks!
Joshua Casper
Unfortunately, I haven't had access to logic in about 8 years... so, I can't speak to Logic, though, through my own testing, I have found lighter CPU load when running multi-outs rather than multi-instances in Live.
OK, thank you for your reply. And thanks for the article, I learned some new things. All the best.
Hi Joshua, Thanks for the tutorial, very enlightening and hard to get on the web. But I have a problem. Actually, it doesn't work and I'm pretty sure it is because there is something missing in my kontakt for the process to work. in the external instrument, I don't have the option to choose 'Kt. St.2/-Kontakt 5' for the Audio From. I only have 4 aux channel and 11 unassigned channel. How is it so? thank you for your time.
